10.3. Execute

To run the simulation, select “Execute” from the “Run” drop-down menu on the Main Menu banner. The “Choose a Working Directory” window opens. Choose the folder containing input files and click “Select Folder.” A window shown in Figure 10.4 opens. The simulation’s progress appears at the top of the window. Non-fatal errors display in red in the progress window on the left. The file MINEDW.ERR can be reviewed after each model run to view errors. The “Abort” button terminates the simulation, while the “Output Current Result” button prints current simulation results to output files.

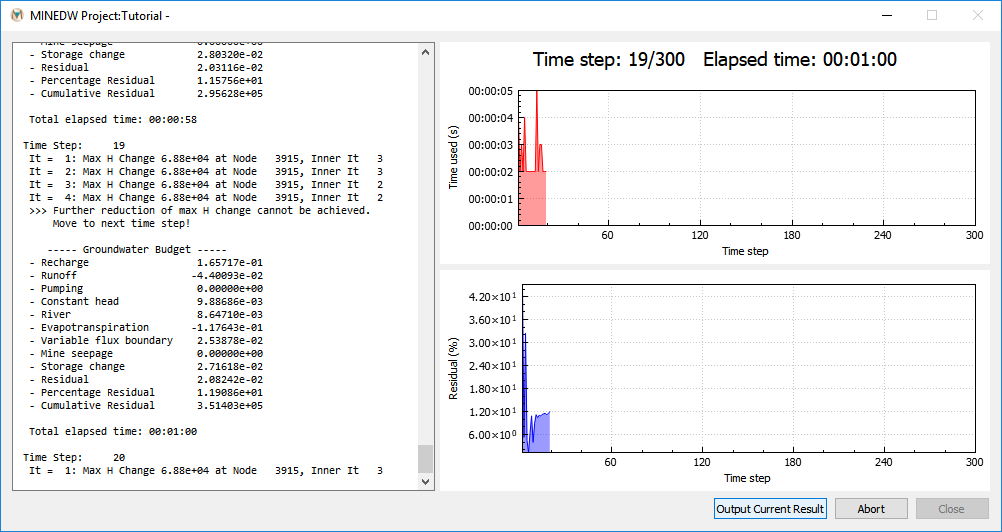

Figure 10.4 Screen display of output from the model run
