Model Components

The PFC model consists of bodies, pieces, and contacts (see Figure 1). There are four types of bodies: balls, clumps, rigid blocks, and walls. A ball consists of one piece, which is the ball itself. A ball is a unit-thickness disk in 2D and sphere in 3D. A rigid block consists of one piece, which is the rigid block itself. A rigid block is a unit-thickness polygon in 2D and polyhedron in 3D. A clump is a collection of pieces. These are typically pebbles, i.e., unit-thickness disks in 2D and spheres in 3D, but can also be balls and rigid blocks. Clumps model arbitrarily shaped rigid bodies. The pieces comprising a clump can overlap but no contact exists between them; instead, contacts form between the pieces located on the boundary of a clump and the pieces of other bodies. A wall is a collection of pieces called facets. Facets are rigid unit-thickness segments in 2D and rigid triangles in 3D that form a manifold and orientable surface. Bodies have surface properties that can be assigned to each piece. The surface properties are used by a contact model to determine the mechanical interaction between pieces. Bodies exist within the model domain and cannot move outside of this region.

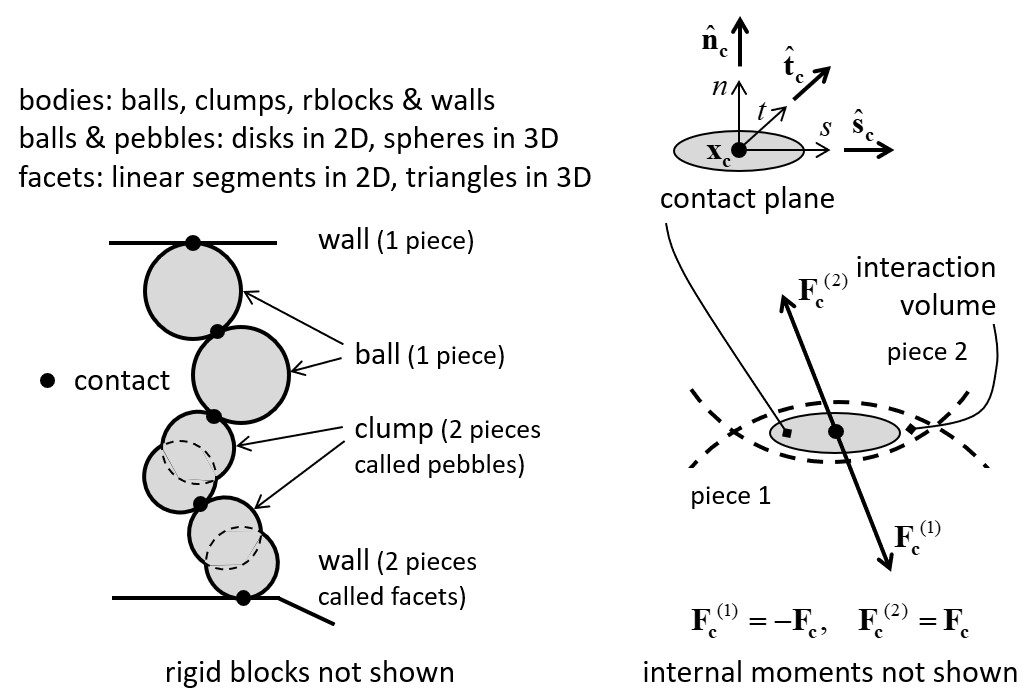

Figure 1: PFC model showing bodies, pieces, and contacts (left) and contact plane with internal force (right).

The motion of balls, clumps, and rigid blocks obeys Newton’s laws of motion, but the motion of walls is user-specified; thus, only balls, clumps, and rigid blocks have mass properties (mass, centroid position, and inertia tensor) and loading conditions (the force/moment applied from contacts, a body force arising from gravity, and an externally applied force/moment).

The mechanical interaction between the surfaces of two bodies occurs at one or more pair-wise mechanical contacts. Contacts are created and deleted during the contact detection step of the cycle sequence based on piece proximity. A contact provides an interface between two pieces [1]. The interface consists of a contact plane with location \((\mathbf{x_c})\), normal direction \((\hat{\mathbf{n}}_\mathbf{c})\), and coordinate system \((nst)\). The contact plane is centered within the interaction volume (either gap or overlap) of the two pieces, oriented tangential to the two pieces and rotated to ensure that relative motion of the piece surfaces remains symmetric w.r.t. the contact plane. Each contact stores a force \((\mathbf{F_c})\) and moment \((\mathbf{M_c})\) that act at the contact location in an equal and opposite sense on the pieces of the two bodies [2]. The internal forces/moments are updated by the particle-interaction law, which takes the relative motion and surface properties of the two pieces as input. We refer to the particle-interaction law as a contact model [3].

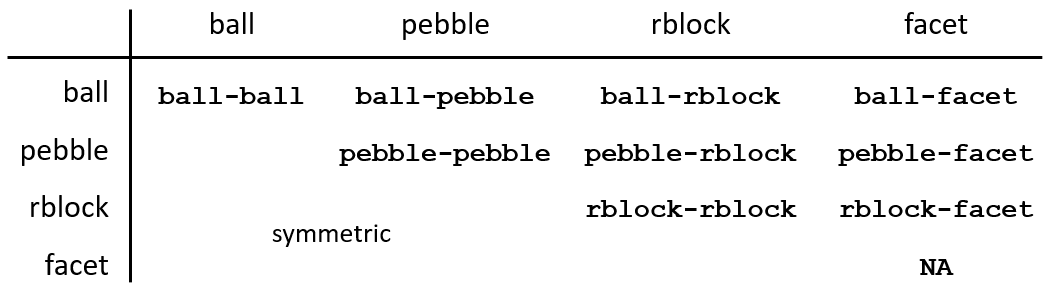

Figure 2: Contact types (nine of them) are based on the types of the two contacting pieces.

A PFC model is created and manipulated by issuing commands. The commands pertinent to each PFC model component are detailed in the section describing this component (i.e., among the sections balls, clumps, rigid blocks, walls, and “Contacts and Contact Models”). Many additional utilities exist to facilitate the modeling process; these are described in the “Common Model Objects” section. The listing of all commands related to PFC model components is available in the PFC Command Summary section. An index of all commands in this documentation (includes FLAC3D and 3DEC commands) is available.

Nearly all aspects of a PFC model are accessible via an internal scripting language called FISH. See the “FISH Scripting Reference” section for an introduction to FISH. Similar to commands, the FISH functions available to access/modify PFC model components are detailed in the corresponding section describing this component. A listing of all FISH functions related to PFC model components can be found in the “Index: PFC FISH Functions” section. All FISH functions in this documentation (includes FLAC3D and 3DEC functions) is provided in the FISH Index as well.

– Next Section: Cycling –

Endnotes

[1]

Contacts are referred to by the types of the two pieces. For example, a contact between a ball and facet is called a ball-facet contact and has a contact type of ball-facet. In the current PFC model, facet-facet contacts are not allowed, thereby giving a total of 9 contact types as shown in Figure 2.

[2]

Contact models that simulate interaction at a distance (such as the Linear Dipole Model) update the force and two moments that need not be equal and opposite.

[3]

The contact model properties may be specified directly via the Contact Model Assignment Table (CMAT). Additionally, the concept of inheritance can be used to specify whether or not piece properties are used to override the default contact model properties.
